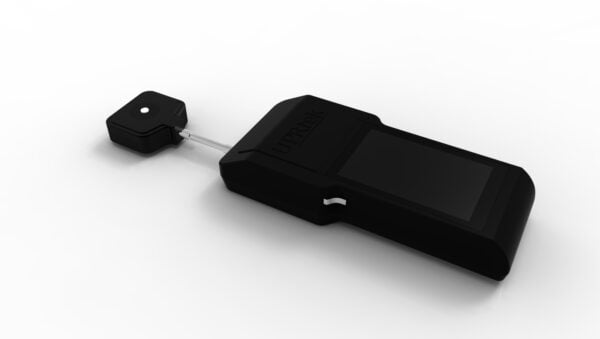

UV100N Handheld UV Spectrometer |
||
| Spectrum | ||
| Sensor | CMOS Linear Image Sensor | |
|
Wavelength Range |
250 to 430 nm |
|
|
Wavelength Data Increment |
1 nm |
|
| Wavelength Data Increment | 1 nm | |
|
Spectral Bandwidth |
Approximately 1nm (Half Bandwidth) |
|
|
Wavelength Reproducibility |
± 0.8 nm |
|
| Measurement Range |
UVA*1,4 : 315 to 430nm / 0.25 to 500 mW/cm2 UVB*2,4 : 280 to 315nm / 0.3 to 200 mW/cm2 UVC*3,4 : 250 to 280 nm / 0.2 to 300 mW/cm2 |
|
|
Accuracy |
± 5% (10 to 500 mW/cm2) ± 10% (0.2 to 10 mW/cm2) |
|
|
Stray Light |
-25 dB max. *5 |
|
|
Integration Time Range |
1 ms to 2,000 ms |
|
|
Digital Resolution |
16 bits |
|
| Feature | ||
|
Capture Function |
One time / Continuous |
|
|
Operation Mode |
Standalone |
|
|
Integration Mode |
Auto / Manual |
|
| Measuring Modes |
1. Basic Mode |
|
|
2. Spectrum Mode |
||
|
3. Logging Mode |
||
|
4. Browser Mode |
||
|
5. Option Mode |
||
| Measuring Capabilities |
1. Spectral Irradiance (mW/m2 , mW/cm2) |
|
|
2. Joul (mJ/ cm2) |
||
|
3. Peak Wavelength (λp) |
||
|
4. Peak Wavelength Value (λpV) |
||
|
5. Integration Time (I-Time) |
||
|
6. UVA Peak Wavelength (λa-p) |
||
|
7. UVA Peak Wavelength Value (λa-v) |
||
|
8. UVB Peak Wavelength (λb-p) |
||
|
9. UVB Peak Wavelength Value (λb-v) |
||
|
10. UVC Peak Wavelength (λc-p) |
||
|
11. UVC Peak Wavelength Value (λc-v) |
||
| System Configurations | ||
| Display | 4.3″ 800×480 Capacitive Touch LCD | |
|
Max. Files |
≒ 68,000 Files @ 8GB SD Card(Excel) |
|
|
Battery Operation Time |
≦ 3 hours / Fully Charged |
|
|
Power |
≦ 5 hours / Fully Charged | |
|
Data Output Interface |
MicroSD Card(SD2.0,SDHC / up to 32G) |
|
|
Data Format |
Compatible Excel |
|
|
Operating Temperature / Humidity |
5 to 35 °C, relative humidity 70% or less without condensation |
|
|
Storage Temperature / Humidity |
-10 to 40 °C, relative humidity 70% or less without condensation |
|
| *1：Input source must be a stable light source. *2 ：Temperature 23±2℃ and relative humidity 50% or less. *3：Input the 550nm monochromatic light and measure the stray light ratio at 550nm ± 40nm. *4：It can be connected to mobile phones and tablets. *5：MSC- Mass Storage Class. *6 : Only sensor, not the whole body The company reserves the right to change product specifications at any time without prior notice. |
||
